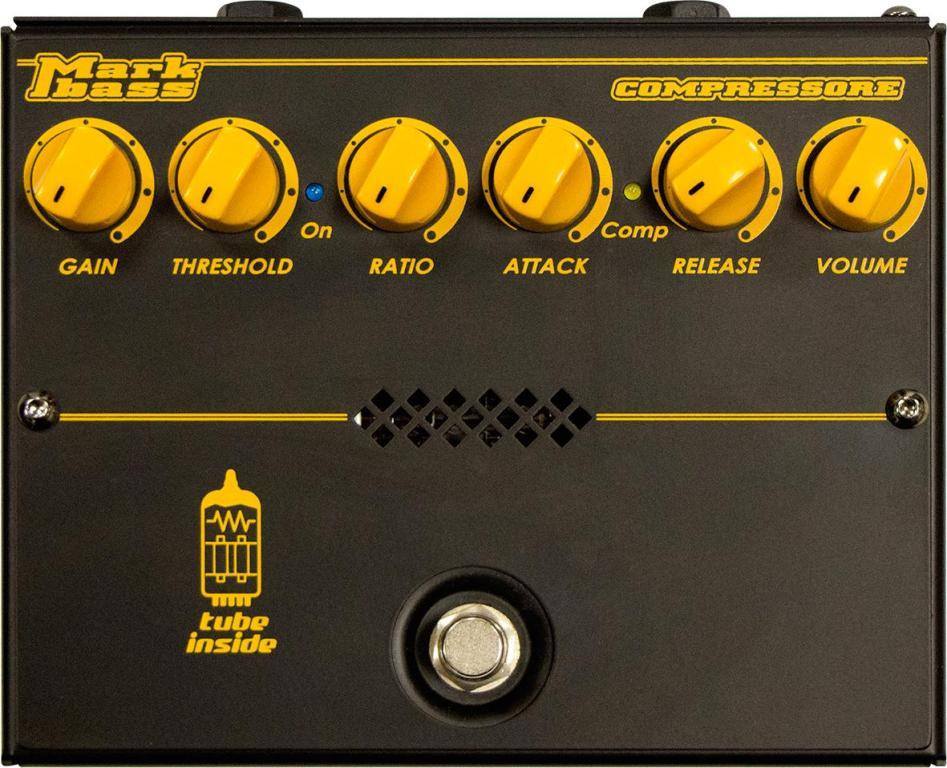

CONTROLS
GAIN
THRESHOLD
RATIO
ATTACK
RELEASE
VOLUME
ON/OFF SWITCH
REAR PANEL
INPUT jack
OUTPUT jack
POWER jack (DC 12V)

TECHNICAL SPECS
Input Impedance: 300 Kohm
Gain: 0 ÷ +16dB
Threshold: 30mVp ÷ 1,8 Vp
Ratio: 1:1 ÷ 1:? (hard limiter)
Attack: 2 ÷ 50 ms
Release: 100 ÷ 750 ms
Output Impedance: 100 ohms
Power Requirements - DC input: +12VDC / 600mA minimum*
TUBE: 1x ECC81
Dimensions: 6.53?x 5.59?x 2.08? / 166 x 142 x 53 mm
Weight: 1.55 lbs / 700 gr

* 12VDC power supply included
