Like all our products, the PRO BASS MIXER was developed to meet the needs of musicians. With 3 channels, the PRO BASS MIXER is an excellent choice for all musicians (not just bassists) who
use more than one instrument and require separate controls for each. Each compact section per channel features Gain and Volume controls, Hifizer and Old School filters and an Output Selector switch that lets you choose between Out 1 and Out 2. In addition channel 3 has switchable 48V Phantom Power for Condenser Mics. And should you need virtually unlimited channels, you can connect the Out 1 and Out 2 of one PRO BASS MIXER to another giving you ultimate flexibility.

KEY POINTS
> Pro Mixer in a stompbox
The PRO BASS MIXER features 3 channels, designed for musicians who use more than one instrument and require individual controls for each. It contains everything in a super practical stompbox form that allows each channel to be switched on or off via footswitch, and much more.
> Linkable design
The PRO BASS MIXER unique design allows more than one unit to be connected together, providing virtually unlimited available channels and flexibility.
> Output Selector
Each channel has an Output Selector allowing the choice of 2 outputs to route your channel signal, enabling very versatile applications.
> Simple ed effective controls, Hifizer and Old School Filters
The PRO BASS MIXER features Gain and Volume controls on each channel to optimize the level of each signal. Each channel has a Hifizer filter (a Pre Shape filter, min @ 700Hz, from 0 to 25dB) that boosts lows and highs, cutting mids to deliver a hi-fi tone (ideal for slap and pick playing), and each channel also has an Old School filter (Frequency range from 450Hz to 20kHz) to dial in
a mellow, less modern sound just like its name suggests.
> Phantom Power
The combo jack input of CH3 features 48V Phantom Power allowing you to use the XLR input with a condenser microphone, or with active pickup systems that use a balanced XLR output.

Specifications:
No specifications available at the moment
Find a Dealer
Download Manual
Technical Features
CHANNELS
3

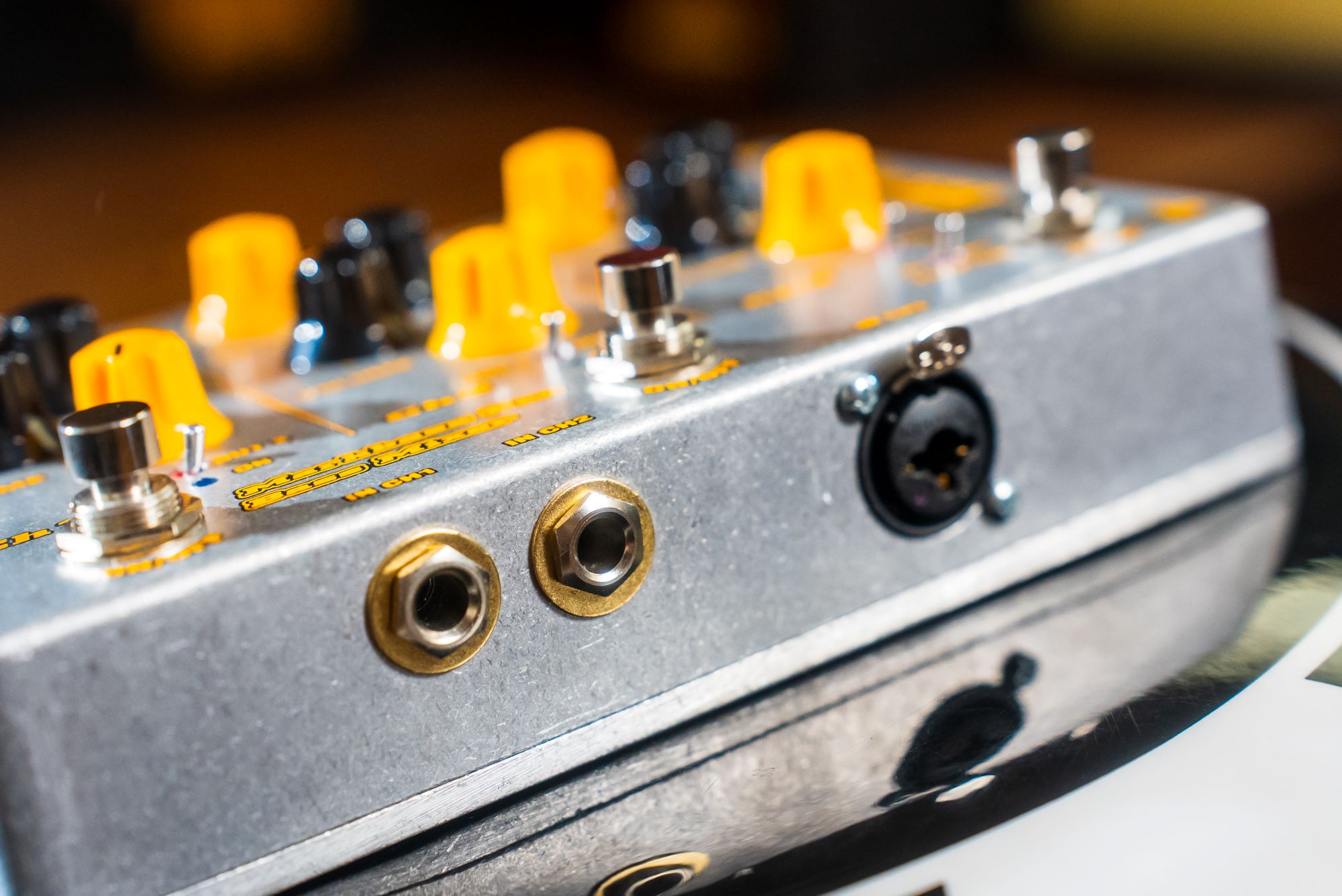

IN CH1 (1/4" jack) and IN CH2 (1/4" jack)
Impedance 1MΩ, max. voltage 5 Vpp

IN CH3 (combo jack) UNBALANCED BALANCED
Impedance 22KΩ, max. voltage 5 Vpp
Impedance 2KΩ, max. voltage 6 Vpp

other INPUTS
LINK 1 (1/4″ jack) and LINK 2 (1/4″ jack)

PHANTOM POWER (48V)
on CHANNEL 3 (with on/off switch)

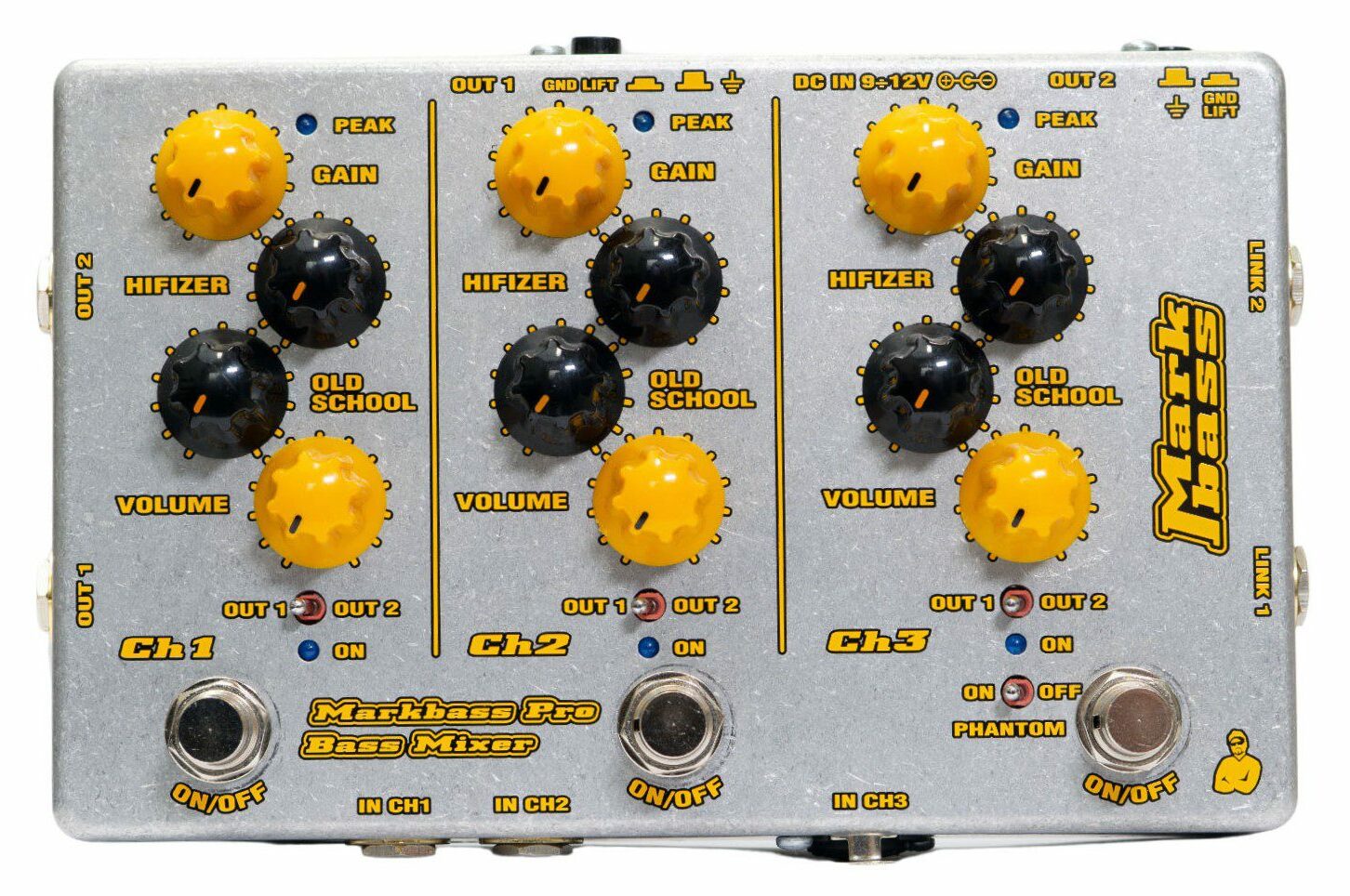

CONTROLS (each channel)
GAIN | VOLUME | HIFIZER | OLD SCHOOL

OUTPUT SELECTOR
switch OUT 1 / OUT 2 (on each channel)

OUTPUTS

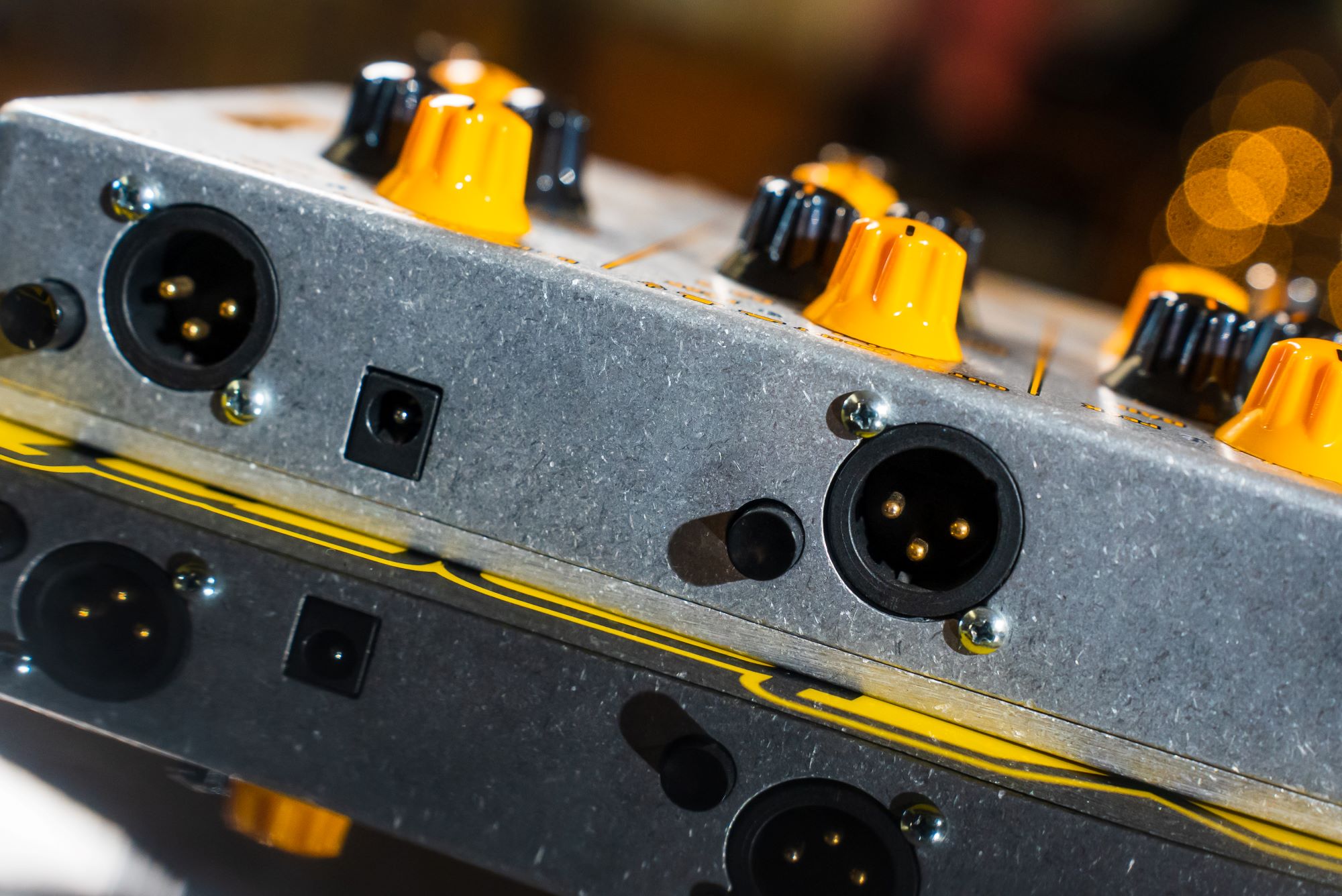

BALANCED OUT 1 (with GND) and BALANCED OUT 2 (with GND)
OUT 1 (1/4″ jack) and OUT 2 (1/4″ jack)

POWER REQUIREMENT
9 to 12VDC | 120mA (power supply included)

DIMENSIONS (W/D/H)
6.1″ x 5″ x 2.05″ | 15.5cm x 12.7cm x 5.2cm

WEIGHT
1.83 lb | 830gr
